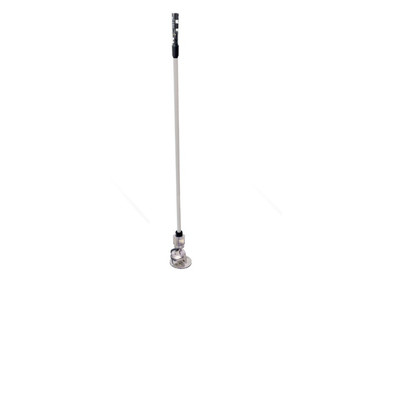

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Contour 39in Combo Light, 12/24VDC White Shaft Use Standard Antenna Mount
Model: 101904- Ultra-Thin Slim Design.
- Three Lights in One, Masthead, Anchor and Stern Light.
- Rated to 3NM
- The Antenna Mount base is not included with the light (shaft fixture ONLY).
The Contour Masthead 360 All-Round Anchor Combo Light takes masthead combo lights to a new level. An innovative design approach dramatically reduces the lights' profile and weight, making this Contour Masthead/Anchor Combo Light the slimmest and lightest on the market. Meeting USCG and NMMA C5 2021 standards and rated to 3 nautical miles, the Contour Masthead/Anchor Combo Light is available in a 39" (1m) length with two mounting options—a motorized base and antenna mount. It is IP67 compliant. NOTE: The Antenna Mount base is not included with the light (shaft fixture ONLY).
Specifications| Color Output | White |
| Finish / Housing | 39""-White with Antenna Base |
| Voltage | 10-30 vDC |
| 12v DC Amps | 185mA |
| 24v DC Amps | 95mA |
| Related Watts | 2.2W |
| Op. Temp F/C | -31/35 to + 131/55 |
| Height | 39 in (99.6 cm) - 1M |
| IP Rating | 67 |
| PLI Enabled | No |
| Timed Toggled Protocol (TTP) | No |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | No |
| CE Certified | No |
| UL Certified | No |
| USCG Rated | 3 NM |
