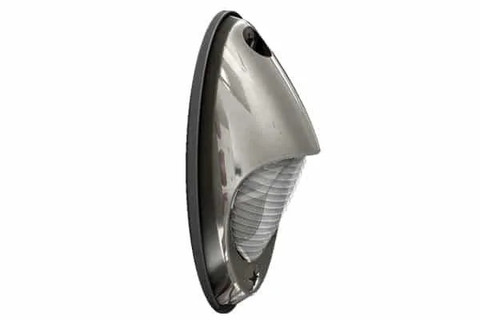

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Nautilus Piling Light Spectrum RGBW - Warm White, Stainless Steel
Model: 101670Small, clean, and versatile, Nautilus is perfect for pilings, posts, pathways, and wall-wash applications. Surface mountable with included adapter for curved for flat mounting locations. Nautilus is available in a hand-polished 316 stainless steel or hand-polished bronze finish. Choose from single color warm white or full-color Spectrum output. The Nautilus light is PLI and TTP enabled, meaning it can be used with any standard 12v-24v DC power supply; added to a Mantis dock light kit; or designed into a Kraken dock light system. Completely water sealed and IP67 compliant.
Specifications| Lumens (White) | 255 |
| Voltage | 10-30vDC |
| 12v DC Amps | 440mA |
| 24v DC Amps | 240mA |
| Related Watts | 5.2w |
| CCT | 3000 |
| CRI | 80+ |
| Op. Temp F/C | -31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) | Yes |
| Third Party Dimmer Compatibility (3PD) | Yes |
| Color Match Commitment (CM) | Yes |
| Mounting Hole Diameter | N/A |
| Height | 4.2"" |
| Width | 1.6"" |
| Depth | 1.5"" |
| Diameter | N/A |
| Finish/Housing | Stainless Steel |
