CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Nautilus Piling Light Warm White, Stainless Steel

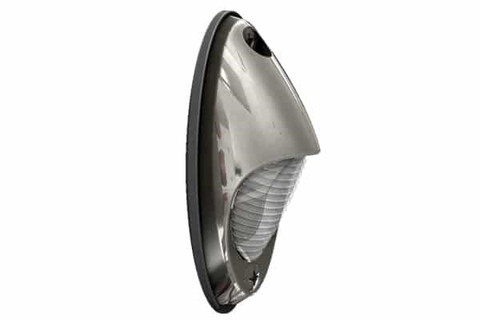

Model: 101633With a sleek, low profile design Lumitec’s new Scallop Pathway Light is the world’s first ADA-compliant, PLI-compatible, dock and pathway light. The carefully engineered beam-angle minimizes glare while cleanly illuminating walkway surfaces. Scallop is available in a hand-polished 316 stainless steel or hand-polished bronze finish. The Scallop light is PLI and TTP enabled, meaning it can be used with any standard 12v-24v DC power supply; added to a Mantis dock light kit; or designed in to a Kraken dock light system. Completely water sealed and IP67 compliant.
Specifications| Lumens (White) | 170 |
| Voltage | 10-30vDC |
| 12v DC Amps | 360mA |
| 24v DC Amps | 180mA |
| Rated Watts | 4.3W |
| CCT | 5000 |
| CRI | 70+ |
| Op. Temp F/C | -31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) | Yes |
| Third Party Dimmer Compatibility (3PD) | Yes |
| Color Match Commitment (CM) | Yes |
| Mounting Hole Diameter | N/A |
| Height | 4.2"" |
| Width | 1.6"" |
| Depth | 1.5"" |
| Diameter | N/A |
| Finish/Housing | Stainless Steel |
