CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Seablaze Mini

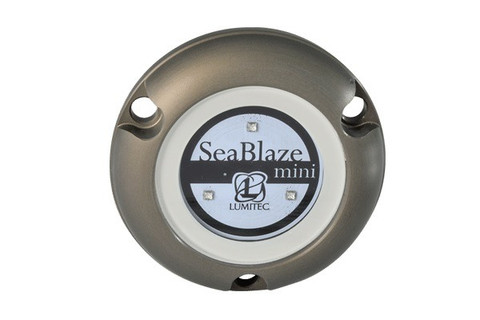

White LED Underwater Light
Model: 101245The compact SeaBlaze Mini packs the greatest value punch in LED underwater lighting! Leveraging many of the technologies utilized in the world's most popular underwater light, the SeaBlaze3, ensuring years of trouble free service. With an actual measured output of nearly 900 lumens, there is simply no better value in LED underwater lighting. Perfect for smaller trailer boats, skiffs, or dinghies. Sold as a pair.
Specifications| 800 | |
| Voltage | 10-30vDC |
| 12v DC Amps | 990mA |
| 24v DC Amps | 450mA |
| Rated Watts | 12 |
| CCT | 6500 |
| CRI | 70+ |
| Op. Temp F/C | Op. Temp F/C:-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) | No |
| Third Party Dimmer Compatibility (3PD) | Yes |
| Color Match Commitment (CM) | No |
| Mounting Hole Diameter | 1/4 |
| Height | N/A |
| Width | N/A |
| Depth | 0.58in (1.48cm) |
| Diameter | 2.98in (7.57cm) |
