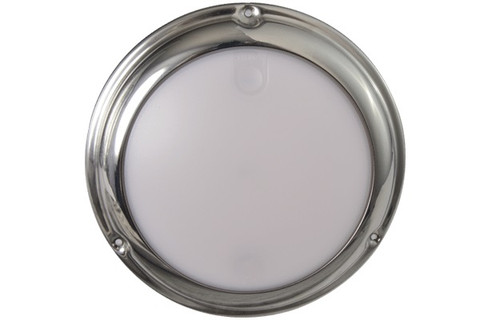

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Touch Dome
White/Red LED Light
Model: 101098Touch Dome is beautifully designed, elegantly functional and brilliantly engineered to be completely sealed with no o-rings, baffles, or switches to wear out. Unlike old capacitive or e-field switch technology, the Touch Dome is reliable even when wet or wearing gloves and proprietary Optical Field Sense technology provides on/off, color change and even dimming at the touch of a finger.
Specifications| 244 | |
| Voltage | 10-30vDC |
| 12v DC Amps | 410mA |
| 24v DC Amps | 215mA |
| Rated Watts | 6 |
| CCT | 5000 |
| CRI | 70+ |
| Op. Temp F/C | -31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) | No |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | Yes |
| Mounting Hole Diameter | 3/4 |
| Height | N/A |
| Width | N/A |
| Depth | 1.13in (2.87cm) |
| Diameter | 6.75in (17.15cm) |
