CAD DrawingCAD Drawing 2CAD Drawing 3OceanLED Sport Colours DMX Under Water Light

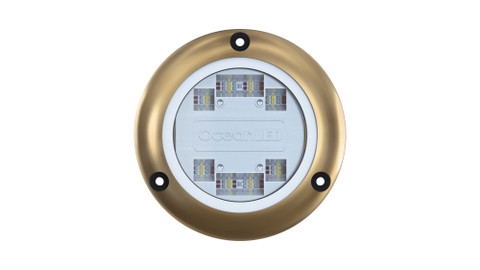

Model: 012117CD- Up To 3,500 Fixture Lumens
- Advanced Optics
- Full RGBW Multi-Colour
- IP69k Certified
- 20?focused side beam providing greater water penetration.
- 90? wide beam angle with no fading at the edge gives better illumination.
- Active Thermal Control
- Ultra Reliable
- Fish-Strobe Mode
The Sport Colours DMX takes underwater lighting to breathtaking new heights. This ultra-reliable surface-mounted, full-color underwater light, is capable of producing up to 3,500 fixture lumens. Constructed using the finest marine-grade aluminum bronze, and certified to IP69K for water ingress protection, the Sport Colors DMX is the perfect choice for sport fishing vessels, leisure craft, and wake sports boats. Benefiting from our signature optics, creating a blade of light that cuts through the water in a way no other underwater lighting brand can match, the Sport Colours DMX leads it’s class. Dramatically reducing light loss and creating unrivaled lighting effects.
The Sport Colours DMX light benefits from our signature underwater optics. Our unique optics have been specifically designed by our in-house team of expert engineers to supercharge a light’s performance. With advanced light angling techniques, our optics focus the light to create a blade of light, that cuts through the water in a way no other underwater brand can match. The result is a light that uses far less power than its counterparts, whilst creating a superior effect.
The Sport Colours DMX light has been rigorously tested to IP69K, the highest protection standard available, to ensure your complete peace of mind. The forged marine-grade aluminum bronze housing and specialist toughed colourless glass, provide an extremely tough outer surface. The addition of advanced seals mean the Sport Colours DMX is one of the most robust and long-lasting underwater lights available anywhere.
Exceptionally bright and randomised strobing of the light is proven to attract more fish and catch more bait.
The powerful, digitally enhanced internal microcontroller ensures high-speed efficiency and fast transient response. Built-in active thermal control (ATC) means you never have to worry about overheating. The light will automatically manage its own output and throttle-back as needed, to protect the LEDs.
Thanks to its surface-mounted installation, the Sport Colours DMX is quick and easy to install. Just a single 12.5mm (0.5") hole is required for installation, perfect for those looking to install their lights themselves.
Specifications| Fixture Lumens | Up to 3,500 |
| IP Rating | IP69k Certified |
| Typical LED life expectancy | 40,000+ Hours |
| Minimum-Maximum operating voltage DC | 9-32V DC |
| Current / Amp draw (DC) | 12v DC 5.5A / 24V DC 2.4A |
| Driver type | Internal, Reverse Polarity Protected |
| Extension cable length (standard) | 78.7' (2m) |
| Hole cut-out for cable entry | 0.5" (12.5mm) |
| Material | AB2 Aluminium Bronze |
| Installation depth (To top of fixture) | 8-10" (20-25cm) |
