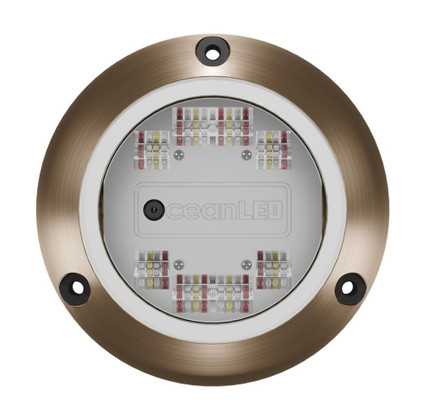

CAD DrawingCAD Drawing 2CAD Drawing 3OceanLED Sport Colours - Camera Edition
Model: 01223CDN- Up to 3,500 Fixture Lumens
- Advanced Underwater Optics
- Easy Install
- No Hassle Warranty
- Underwater Camera
- Ultra Reliable
- Built-In Driver
- IP69K Certification
The Sport Colours — Camera Edition is the world’s first surface-mounted, full-colour underwater light with an integrated underwater camera. Designed for both recreational and professional use, this all-in-one solution delivers exceptional underwater visibility and unmatched lighting effects, ideal for leisure boats and sport fishing vessels.
The Sport Colours - Camera Edition is more than an accessory — it’s a competitive advantage.
Its wide angle-of-view offers a natural perspective with zero distortion, making it ideal for docking, hazard detection, and capturing underwater action in full clarity. Producing 3,500 fixture lumens, the Sport Colours — Camera Edition leverages OceanLED’s most advanced optical technology, ensuring uncompromised performance.
Specifications| Fixture Lumens | 3,500 |
| IP Rating | IP69k Certified |
| Minimum-Maximum operating voltage DC | 9-32V DC |
| Current / Amp Draw (DC) | 12V DC 5.5A / 24V DC 2.4A |
| Camera | |
| Image Sensor: | 1/4" CMOS |
| Minimum Illumination: | 0.01 Lux |
| White Balance: | Auto |
| Exposure | Auto |
| Video Output: | 1.0Vp-p 75? BNC |
| TV System: | NTSC: 720 x 480pixels, 30fps |
| Physical | |
| Total Weight | 700g |
| Cable Length | 3m |
| Hole cut-out for cable entry | 0.5" (12.5mm) |
| Material | AB2 Aluminium Bronze |
| Footprint | 3.93"" (100mm) |
What's in the Box:
- Sport Colours - Camera Edition
- In-Line Fuse Kit
- BNC Adaptor
- Mounting Screws
- Quick Install Guide
