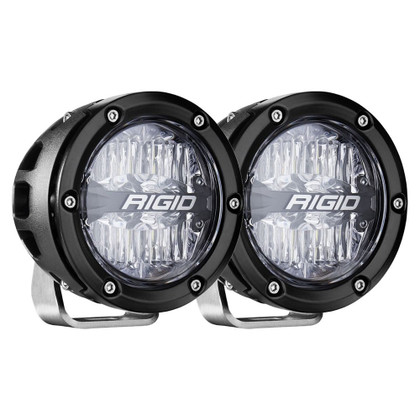

CAD DrawingCAD Drawing 2CAD Drawing 3360-Series RGBW 4" Offroad Lamp Drive Beam with RGBW Backlight Pods - Set of 2
With optimized beam patterns and an RGBW backlight, RIGID’s 360-Series RGBW round lights are stylish and functional. The 360-Series RGBW round lights are protected by a high-grade aluminum alloy housing and can project up to 8,600 raw lumens making them one of the most robust and useful round lights on the market. Inside, the 360-Series RGBW round lights are feature-packed, with a black exposed circuit board, optimized forward projecting optics, and a color-changing backlight that lets you toggle between eight available backlight options with the flip of a switch: red, green, blue, light blue, purple, amber, white, or demo mode. Select from the 4-inch, 6-inch, or 9-inch lights with Spot, Drive, and Diffused (4-inch Only) beam patterns for a customized experience and look. RIGID’s 360-Series RGBW round lights seamlessly integrate into multiple applications and make it easier than ever to Own The Night.
Features:
- RGBW Backlighting
- Back Lighting Independently Controlled
- Stainless Steel Mounting Bracket Included
- Removable Bezel for Color Matching
- Removable Bezel and Side Fairings for OEM Applications
- 9-36 VDC Operation
- Flying Leads for Universal Installation
- Alloy Housing and Heatsink
- Reverse Polarity Protection
- Over/Under Voltage Protection
- IP68 Compliant - Dust/Water Ingress
- Pressure Equalizing Vent
- Black Exposed Printed Circuit Board
- Patented Optics
- 50,000 Hr+ LED Lifespan
- Limited Lifetime Warranty
- Off-Road Use Only
Product Comes With:
- Mounting Hardware
- Stainless Steel U-Shape Bracket
- Harness
- Switch
Specifications:
- Size: 4"
- Weight: 1.30lbs
- Optics: Drive
- Watts: 23W
- Amp Draw: 2
- Raw Lumens: 3060
- Lux @ 10m: 326.9
- Beam Distance @ 1 Lux: 180.8
- Beam Distance @ .25 Lux: 361.6
- Peak Beam Intensity (cd): 32685
- Horizontal Beam Angle: 44
Manufacturer : RIGID Industries
Manufacturer Part No : 36401
UPC : 849774036224
