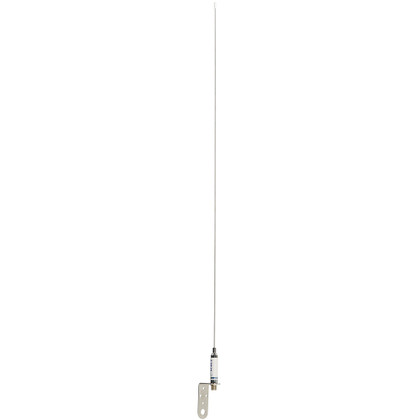

CAD DrawingCAD Drawing 2CAD Drawing 33' Stainless VHF Whip 3dB with Bracket for Sailboats - No Cable
The KM-3A antenna is developed for sailing boats. It combines lightness and flexibility due to the quality stainless steel whip. Its elegant style fits perfectly with the boat design.
The antenna is supplied together with a stainless steel mounting bracket, which makes the installation quick and stable.
Features:
- Electropolished stainless steel whip
- Extra flexible
- SO 239 waterproof connector
- Mounting bracket supplied with the antenna
Specifications:
- Frequency: 156-162 MHz
- Impedance: 50 ohms
- Electrical length: 1/2 λ
- V.S.W.R.: < 1,5:1
- Polarization: Vertical
- Gain: 3 dB
- Max power input: 50 W
- DC ground: Yes
- Whip material: Stainless Steel
- Connector: SO 239
- Mounting: Stainless steel bracket
- Length: 1,0 m (3.3′)
- Weight: 0,23 kilo
Manufacturer : Scout
Manufacturer Part No : PF AN NVHF00012T
