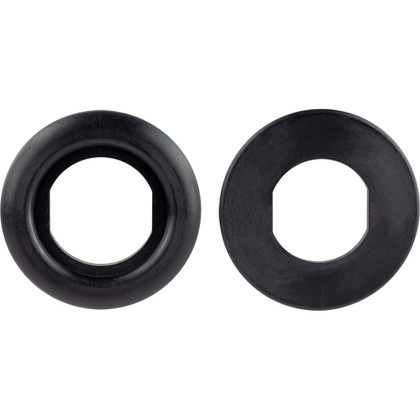

CAD DrawingCAD Drawing 2CAD Drawing 32" Gauge Power Socket Adapter Mounting Plate
This instrument hole adapter is designed to install standard 1-1/8-in. gauges and meters into 2 in. instrument dash panel holes. The socket adapter is installed by placing the face plate in front of the dashboard and then inserting the socket/meter in the hole with the washer behind.
Features:
- Designed with D-flats to prevent gauges from spinning, the assembly is held in place by the socket/meter nut for a clean, finished look
- Constructed of UV-resistant injection-molded nylon
Specifications:
- Face Plate Outer diameter: 2-3/16 in.
- Face Plate Inner Diameter: 1-3/16 in.
- Face Plate Thickness: 3/16 in.
- Height: 2 in.
- Washer Inner Diameter: 1-1/16 in.
- Washer Thickness: 1/8 in.
- Weight: 0.04
Manufacturer : Sea-Dog
Manufacturer Part No : 426101-1
