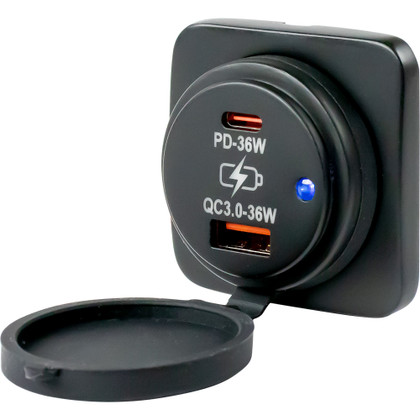

CAD DrawingCAD Drawing 2CAD Drawing 3USB A / USB C Square Surface Mount Power Socket
This square surface-mount USB 3.0 & USB-C power socket charges two devices simultaneously. When split, the total 6A output is 3A per side.
Features:
- USB 3.0 features Quick Charging (QC) for supported devices gives enough power to charge phones, pads, and tablets quickly and efficiently
- USB-C features Power Delivery (PD) for faster and more flexible charging
- A protective dust cap covers ports when not in use
- Constructed of injection-molded nylon
- Easy installation requires drilling a 3/16-in. hole for the wire connection, securing it to the surface with two #6 screws (not included), and snapping the concealed fastener cover in place
- Blue LED illumination
- IP65 rating
- CE & RoHS compliant
Specifications:
- Output DC: 5V/6A
- Input: 8-32VDC
- USB-C Watts: 60W@24V
- USB 3.0 Watts: 36W@12V
- Dimensions (inch): 1-15/16” – 1-15/16”
- Depth: 3/4 in.
- Volts: 8-32
- Weight: 0.07
Manufacturer : Sea-Dog
Manufacturer Part No : 426531-1
