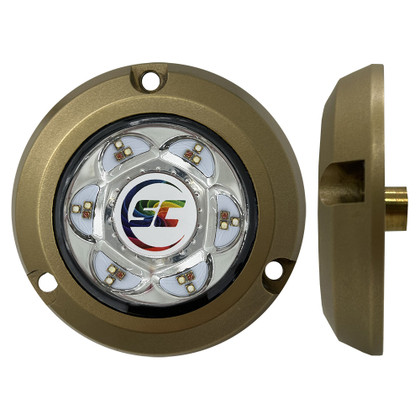

CAD DrawingCAD Drawing 2CAD Drawing 3SC2 Series Bronze Surface Mount Underwater Light - Full-Color
The SC2 underwater light provides a vessel with 24 watts of intense LED lighting. The SC2s are designed with a sub-compact 2.99" bronze housing for under-the-waterline surface mounting. Single-color and color-changing versions are available with variable brightness and a wide array of control options. This underwater light has a full-color (RGBW) color output.
Features:
- A proprietary clear gel-filled design, injected through the entire unit, eliminates condensation and/or water intrusion under stress
- Tough, scratch-resistant, tempered glass lens with bronze housing—impervious to acetone, solvents, and demanding marine environments
- Transient surge and reverse polarity protection dramatically prolong unit life
- Thermal throttling technology enables safe operation even in water
- From simple on-off to full-feature lighting effects, the unit is enabled for a host of control interfaces
Specifications:
- Color: Full color (RGBW)
- Up to 3,000 lumens
- 120-degree beam angle
- 24-watt power draw
- 2 amps of operating current draw @ 12V
- 10-30 volts input
- 2.99” (75.9mm) outside diameter
- IP68 fully submersible waterproof design
Includes:
- Lighting unit
- 3’ (1m) submersible grade cable
- 3 mounting screws
- 3-year standard warranty
2 Control Options:
- Power Toggle Control - Quickly toggle the power source to advance to the next color or brightness level
- Add Shadow-NET™ Control - Dramatic, full-feature control through your Multifunction Display (MFD) by adding the Light Commander Shadow-NET™ control module (SCM-LC-PLUS) and app
Manufacturer : Shadow-Caster LED Lighting
Manufacturer Part No : SC2-CC-BZSM
