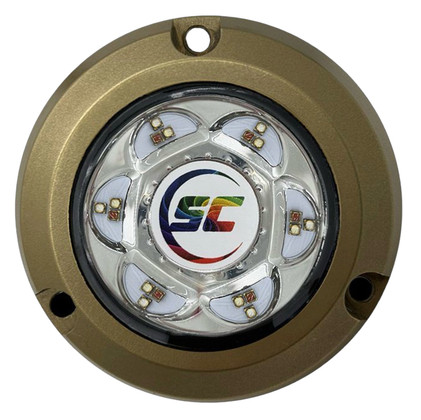

CAD DrawingCAD Drawing 2CAD Drawing 3Shadow-Caster SC2 Color Changing Bronze Surface Mount Underwater Light
Model: SC2-BB-BZSM- Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
- Tough, scratch resistant, tempered glass lens with composite or bronze housing — impervious to acetone, solvents and demanding marine environments.
- Transient surge and reverse polarity protection — dramatically prolongs unit life
- Thermal throttling technology — enables safe operation even out of water
- From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
- 3-Year Warranty
Quickly toggle power source to advance to next color or brightness level.
Full color lights allow for any single color on, fade blue to white, fade through all 12 colors and strobe current color.
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® Light Commander control module (SCM-LC-N2K-PLUS-V2) & app.
.
Specifications| Lumens | Up to 3,000 |
| Beam angle | 120° |
| Voltage | 10-30vDC |
| Current draw | 24 watts |
| Diameter | 2.99in |
| Waterproof rating | IP68 |
| Color | Full Color — 12-color standard, or unlimited colors with Shadow-NET® |
| Housing | Bronze |
