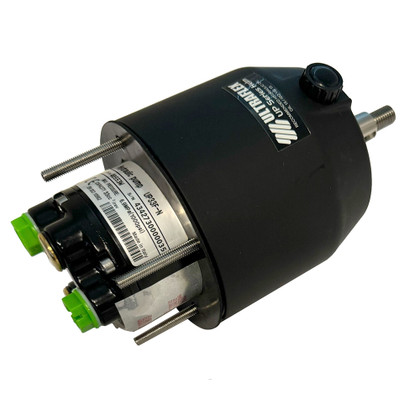

CAD DrawingCAD Drawing 2CAD Drawing 3UP33FM Helm Pump 2.0 Cubic Inches
Features:
- Compact design
- Built-in lock valve for positive rudder lock
- Integral relief valve for over-pressure protection
- Compatible with Teleflex SeaStar cylinders, hoses and oil
- 3/4" tapered stainless steel shaft
- Easily accessible lock valve and shaft seal for replacement
- Convenient front of dash fill
- Adjustable Boss Fittings compatible with Kit OB and Kit OBSVS hose kits and SeaStar hoses
- Relief valve pressure: 1000 PSI
Specifications:
- Mounting: Front Mount
- Displacement/Revolution: 33cc-2.0 cubic inches
- Number of Pistons: 7
- Relief Valve Setting: 70 Bar - 1,000 PSI
- Maximum Wheel Diameter: 710mm - 28"
- Weight: 5kg-11lbs
Manufacturer : Uflex USA
Manufacturer Part No : UP33FM
UPC : 702755021629
