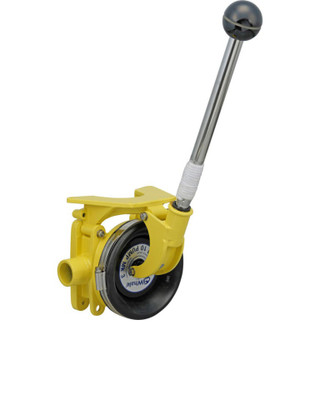

CAD DrawingCAD Drawing 2CAD Drawing 3Whale Gusher 10 Manual Bulkhead Mount Bilge Pump
Model: BP3740- Top performance 65 ltrs/min (17 US Gals)
- High flow non-choke valves, no filter to block or clean
- Mounting options - on deck, thru deck, bulkhead
- Designed for easy installation and maintenance
- Easy pump action
THE ORIGINAL BILGE PUMP CHOICE FOR SAILORS IN EXTREME CONDITIONS
Specifications| Weight | 2.3kg (5.0lbs) |
| Hose connection | 38mm (1½") |
| Materials | Pump Body: Marine Grade LM6 Aluminium Alloy (epoxy coated), Diaphragm: Neoprene (Nitrile option available), Fasteners: Stainless Steel |
| Max suction lift | 4m (13ft) |
| Max discharge head | 4m (13ft) |
| Suction lift | 2m (6ft) |
| Discharge head | 0.5m (1.5ft) |
| 45 Strokes per minute | 41 ltrs/min (11 US Gals) |
| 70 Strokes per minute | 65 ltrs/min (17 US Gals) |
| Warranty | 5 Yeares |
