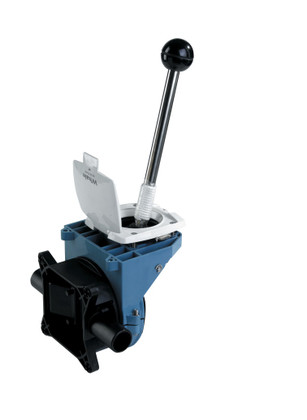

CAD DrawingCAD Drawing 2CAD Drawing 3Whale Gusher Titan Manual Bulkhead Mount Bilge Pump
Model: BP4410- High flow rate 105 ltrs/min (28 US Gals)
- Quick maintenance - clamping ring is easily removed for pump head rotation
- Multiple mounting options
- Suitable as primary pump for boats 12m (40ft) and greater
- Simple plumbing
TOUGH AND LIGHTWEIGHT POLYPROPYLENE MODELS, COMBINES POWERFUL PERFORMANCE AND LIGHTWEIGHT DESIGN
Specifications| Weight | 1.85kg (4.1lbs) |
| Hose connection | 38mm (1½") |
| Materials | Pump Body: Glass-Filled Polypropylene, Clamp Ring: Acetal, Diaphragm and Valves: Neoprene, (Nitrile® option available), Operating Lever: Glass-filled Nylon, Gaiter: EPDM, Fasteners: Stainless Steel |
| Maximum suction lift | 4m (13ft) |
| Maximum discharge head | 4m (13ft) |
| Suction lift | 2m (6ft) |
| Discharge head | 0.5m (1.5ft) |
| 45 Strokes per minute | 65 ltrs/min (16 US Gals) |
| 70 Strokes per minute | 98 ltrs/min (26 US Gals) |
| Warranty | 5 Years |
