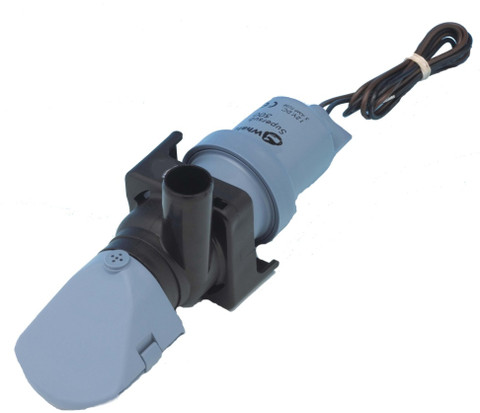

CAD DrawingCAD Drawing 2CAD Drawing 3Whale Supersub 500 GPH Pump 12v
Model: SS5012- Easy installation - outlet and pump body rotate to suit your installation
- Easy maintenance with unique easy clean strainer
- Efficient operation - low power consumption
- Low profile strainer leaves bilge almost dry
- Integrated bleed ball prevents air locks
DESIGNED TO FIT IN NARROW BILGE SPACES WHERE OTHERS DO NOT REACH
Specifications| Weight | 0.27kg (0.6lbs) |
| Fuse size | 5 amps |
| Cable size | 1.5mm (16AWG) |
| Hose Connection | 19mm (3/4 in) |
| Materials | Pump Body: Polypropylene, High Temperature ABS, Fully Potted Circuitry. Locking Ring: Acetal, Impeller: Glass-Filled PBT, Polypropylene, Seals: Nitrile, Fasteners: Stainless Steel |
| Materials in contact with fluid | Polypropylene, ABS, Glass-Filled PBT, Nitrile |
| Max discharge head | 3m (10ft) |
| Open flow rate | 32 ltrs/min (500 US GPH) |
| Open flow rate at 1m (3ft) head | 25 ltrs/min (400 US GPH) |
| Warranty | 3 Years |
| Input Voltage | 12V d.c |
