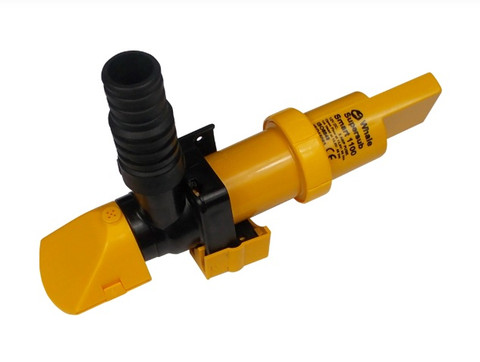

CAD DrawingCAD Drawing 2CAD Drawing 3Whale Supersub Smart 1100 GPH Bilge Pump 12v
Model: SS1212- No separate bilge switch required
- Low profile design is ideal for narrow bilge
- Retrofittable with angled mounting bracket to aid installation
- Low power consumption
- Suitable for use in fresh and saltwater
- Integrated bleed ball prevents air locks
THE ORIGINAL, AWARD-WINNING, LOW PROFILE, NARROW, AUTOMATIC ELECTRIC BILGE PUMP PROVEN OVER 20 YEARS
Specifications| Weight | 0.5kg (1.0lbs) |
| Fuse size | 5 amps |
| Cable size | 1.5mm (16AWG) |
| Hose connection | 25mm (1") / 28mm (11/8"") stepped post |
| Materials | Pump Body: Polypropylene, High Temperature ABS, Fully Potted Circuitry. Locking Ring: Acetal, Impeller: Glass-Filled PBT, Seals: Nitrile, Fasteners: Stainless Steel |
| Materials in contact with fluid | Polypropylene, ABS, Glass-Filled PBT, Nitrile |
| Max discharge head | 3m (10ft) |
| Open flow rate | 66 ltrs/min (1050 US GPH) |
| Open flow rate at 1m (3ft) head | 47 ltrs/min (750 US GPH) |
| Warranty | 3 Years |
| Input Voltage | 12V d.c. |
