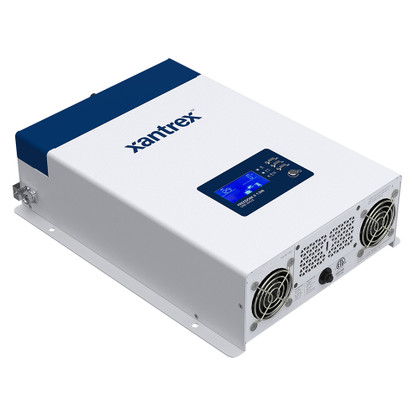

CAD DrawingCAD Drawing 2CAD Drawing 3Freedom X 1200 Inverter Truesine 1000W 120AC 12VDC Hardwire, Transfer
The Xantrex Freedom X 1200 is engineered specifically to meet the needs of heavy-duty trucks and is ideal for installation in all types of commercial and recreational vehicles. This inverter provides up to 1200 watts of continuous utility grade, sine wave power from a battery bank and is designed to handle loads such as microwave ovens, TVs, DVD/Blu-ray players, and power tools. In addition, the Freedom X 1200's high-surge capability lets you handle many hard-to-start loads, including full-size residential refrigerators.
The Freedom X 1200 has a built-in 30 Amp transfer switch that automatically transfers between inverter power and shore power from recreational facilities such as boat docks or campsites to ensure power is always available. If incoming shore power is interrupted by external events like brownouts, the Freedom X 1200 automatically becomes an independent power source that supplies utility-grade AC power to your loads.
The Freedom X 1200 offers comprehensive built-in protection features to safeguard your batteries from the unnecessary drain while protecting your equipment. Features include selectable low battery shutdown voltage, low voltage shutdown delay timer, power save mode, low battery voltage alarm, and shutdown. The Freedom X 1200 also features configurable AC transfer speed, output frequency, and voltage, making it extremely versatile and the perfect blend of performance and cost.
Features:
- Input: 12 VDC
- Output voltage: 120 VAC, 60 Hz
- Continuous Power: 1200W (10.0 A)
- Surge Power: 2400W (20.0 A)
- Output waveform: Pure sine wave
- Transfer relay: 30A
- Dimensions: 14.8 x 10.4 x 3.5 in (376 x 263 x 91 mm)
- Inverter weight: 10.4 lbs (4.7 kg)
- Shipping weight: 13.0 lbs (5.9 kg)
- Warranty: 2 years
Manufacturer : Xantrex
Manufacturer Part No : 806-1212
UPC : 715535900137
