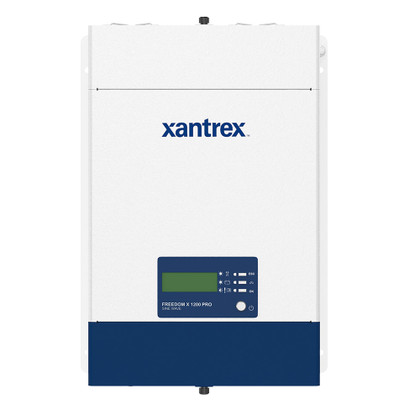

CAD DrawingCAD Drawing 2CAD Drawing 3FREEDOM X 1200 PRO Inverter Truesine 1000W 120AC/12VDC Hardwire Transfer
Engineered specifically to meet the needs of heavy-duty trucks, the FREEDOM X 1200 offers a perfect blend of performance and cost. The FREEDOM X 1200 is ideal for installation in all types of commercial vehicles.
Robust. Durable. Flexible.
Its rugged, industrial design ensures optimum performance in all conditions. Quick-connect terminals at AC input & output and pre-wired pigtail cables enable fast and easy installation on the assembly line. Conformal-coated circuit boards and heavy-duty metal casing make the FREEDOM X 1200 ideal for mobile applications. It also features true sine wave output, 2x continuous power surge rating, a built-in transfer switch, and low battery voltage shutdown among other features. The FREEDOM X 1200 Pro has a built-in communication card for integration with third-party monitoring and control display panels through RV-C connectivity.
Certifications:
- H.A.L.T
- ETL listed to CSA Standard C22.2 No. 107.1
- FCC Part 15, Class B
- UL458* for marine supplement compliance drip shield in specific mounting orientations when required
Applications:
- Recreational vehicles
- Heavy-duty truck
- Work truck
Specifications:
- Power Output Continuous: 1200W
Manufacturer : Xantrex
Manufacturer Part No : 806-1212-05
UPC : 715535917388
