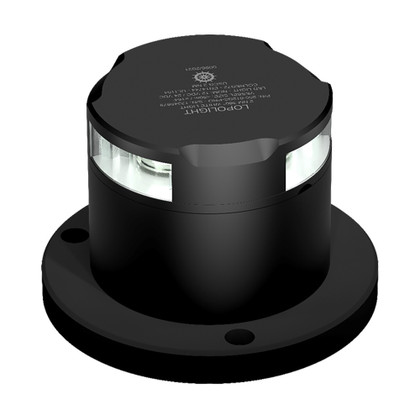

CAD DrawingCAD Drawing 2CAD Drawing 32nm 360° Anchor Light Pro - Black Anodized - White Light
Features:
- Horizontally mounted on POM base (IP68)
- Cable direction side
- Includes HDPE base plate
- Quality cable glands - 2 sizes included:
- 7-13mm (1/4"-1/2") cable diameter
- 4.5-10mm (5/32"-3/8") cable diameter
Specifications:
- Mounting: Horizontal
- Visibility: 2nm
- Intensity: >5.4cd
- Power draw: 2W, 6W
- Operating Voltage: 10-32VDC
- Operating Temperature: -25 degrees C to 55 degrees C
- Vessel size: Under 12M,12-20M,20-50M
- Min. feed wire gauge: 0.5mm2 AWG22
- IP Rating: IP68
- Connection: Plug Connector
- Weight (Kg): 1 Kg
- Weight (oz): 35.27 oz
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Included in the Package: 1 Navigation light, Installation guide
