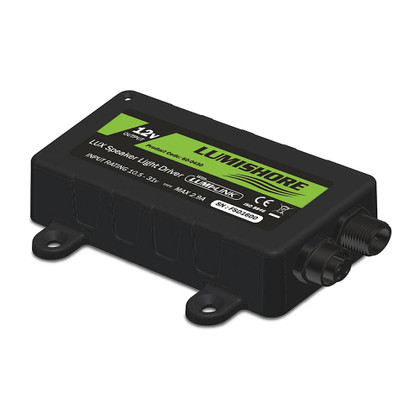

CAD DrawingCAD Drawing 2CAD Drawing 3LUX Speaker Light Driver
Features:
- Full Spectrum RGB Tunable and White Color Temperature Tunable (CRGBW Speakers)
- Full Spectrum RGB Tunable (RGB Speakers)
- Full Lumi-Link Capability for Lux Smart Lighting
- Specially Designed for Ease of Installation
Specifications:
- Ingress Protection Rating: IP68
- Driver: Multi-Channel Internal Driver
- Supply Voltage Range: 10.5 - 31 V DC
- Max Current Draw (12/24V DC): 5.6A / 2.8A
- Surge Protection: Yes
- ATRB (Automatic Thermal Roll Back): Yes
- Low Voltage Protection: Yes
- Auto Power Control: Yes - Intelligent Multi-Channel Power Management
- “Soft Start” Electronics Protection: Yes
- Reverse Polarity Protection: Yes
- In Rush Current Protection: Yes
- Power Line Noice Suppression: Yes
- Max Cable Length to First Speaker: 5m (16.8’)
- Number of Speakers per Driver: 16
- ISO 8846 (Ignition Protection): Yes
Manufacturer : Lumishore
Manufacturer Part No : 010-04448-00
UPC : 847772002678
