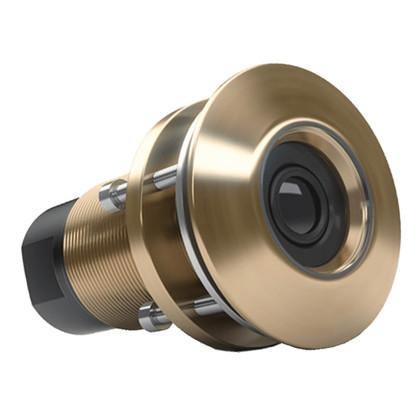

CAD DrawingCAD Drawing 2CAD Drawing 3TIX402 Thru-Hull Flush Underwater Camera
The Lumi-Cam (TIX402) brings all the amazing detail of magnificent sea life and beautiful underwater terrain to life in vivid high-definition color.
The world’s smallest Full HD Mega Pixel (1080p) underwater camera is compact and 'flush-fit' in design, allowing it to be mounted nearly anywhere on the hull. Its integrated internal module makes for easy installation.
Features:
- Full HD 1080p
- 67° Viewing angle
- 3-Year Warranty
- Dynamic Noise Reduction
- Composite Output (BNC)
- HD-SDI Output (BNC)
- Low Light Mode
- Wide Dynamic Range
Specifications:
- Resolution: Full HD 1080p
- Lens: 3.6mm Fixed Focus
- Viewing Angle: 67°
- Minimum Illumination: 0.01 Lux
- Camera Output: HD-SDI or Composite (NTSC/PAL)
- Supply Voltage: 12VDC
- Max Current Draw: 0.25A
- Housing Type: Marine Grade Aluminum Bronze
Manufacturer : Lumishore
Manufacturer Part No : 010-04355-00
