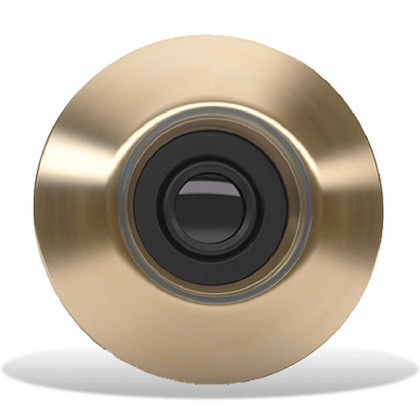

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore TIX402 Camera Thru-Hull Underwater
Model: TIX402- Full HD 1080p
- 67 deg Viewing angle
- 3 Year Warranty
- Dynamic Noise Reduction
- Composite Output (BNC)
- HD-SDI Output (BNC)
- Low Light Mode
- Wide Dynamic Range
The Lumi-Cam (TIX402) brings all the amazing detail of magnificent sea life and beautiful underwater terrain to life in vivid high-definition color.
The world's smallest Full HD Mega Pixel (1080p) underwater camera is compact and 'flush-fit' in design, allowing it to be mounted nearly anywhere on the hull. It's integrated internal module makes for easy installation.
Specifications| FULL HD (1080p) | |
| LENS | 3.6mm FIXED FOCUS |
| VIEWING ANGLE | 67 deg |
| MINIMUM ILLUMINATION | 0.01 LUX |
| CAMERA OUTPUT | HD-SDI or COMPOSITE (NTSC/PAL) |
| SUPPLY VOLTAGE | 12 V DC |
| MAX CURRENT DRAW | 0.25A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
What's in the Box:
- One (1) Lumi-Cam TIX402
- Manufacturer:
- GARMIN USA, INC
